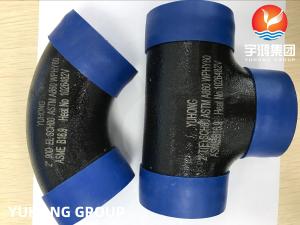

ASTM A860 WPHY60 Buttweld Black Carbon Steel Fittings, Elbows, Equal Tees B16.9

Brand Name : YUHONG

Model Number : WPHY60

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Place of Origin : China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : According to Clients' Requirement

Delivery Time : 5 - 60 Work Days

Packaging Details : Ply-wooden Case / Pallet

Standard : ASTM A860, ASME SA860

Material Grade : WPHY60, WPHY65, WPHY56, WPHY52, WPHY46, WPHY42, WPHY70

Fittings Type : Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducing Tee, Cross, Etc.

Technics : Butt Weld

Size : 1/2''-48''(DN15-DN1200)

Schedule : SCH 5S - SCH XXS

Surface treatment : Hot Galvanized, Black

Application : Construction,gas and oil pipes,air,Petroleum gas water

Contact Now

ASTM A860 WPHY60 Buttweld Black Carbon Steel Fittings, Elbows, Equal Tees B16.9

ASTM A860 WPHY60 is a carbon based alloy which has high strength properties. The main components of the WPHY60 material are nickel, chromium, molybdenum, manganese and copper. Besides these elements, this carbon based alloy contains trace amounts of metals like vanadium, titanium, niobium, sulphur, silicon and phosphorus. The A860 WPHY 60 fittings have highly resistance to disintegration. ASTM A860 WPHY 60 Carbon Steel Pipe Fittings in Wrought High Yield Steel are usually used at High-pressure applications. WPHY60 refers to the high yield strength of the fittings. ASTM A860 WPHY60 Pipe Fittings are also known for high tensile strength and corrosion resistance. The ASTM A860 WPHY60 fittings' properties include great strength, a high ductile quality, great sturdiness and durability. The ASTM A860 WPHY60 fittings' surface can be treated by coating it with either anti-corrosion dark oil or straightforward oil. The surface can also be treated by hot galvanization. Hot galvanization of the WPHY60 fittings can strengthen their resistance to erosion.

Grade ASTM A860 WPHY60
Dimensions ANSI/ASME B16.9, MSS-SP-75
Type Seamless / Welded / Fabricated
Color black
Wall thickness SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS available with NACE MR 01-75
Technics Butt Weld /Forged
Types Reducing Tee, Cross, Long Radius Elbow, Short Radius Elbow, Long Radius Bends, Piggable Bends, Equal Tee, Con Reducer, Ecc Reducer, Pipe End Caps
Size Range Seamless ½” to 24”, Welded ½” to 120”
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Surface treatment Sand Blasting, Sand Rolling, Sand Blasting
Application Petroleum, Chemical, Power, Gas, Metallurgy, Shipbuilding, Etc.

ASTM A860 WPHY60 Buttweld Black Carbon Steel Fittings, Elbows, Equal Tees B16.9

Chemical Composition:

C Mn P S Si Ni Cr Mo Cu Ti V Cb Al
0.2 1-1.45 0.03 0.01 0.15-0.4 0.5 0.3 0.25 0.35 0.05 0.1 0.04 0.06

Mechanical Properties:

Yield Strength
min. MPa [ksi]		 Tensile Strength
MPa [ksi]		 Elongation in
2", min. %
415 [60] 515-690 [75-100] ≤28

Applications:

Chemical Industry
Oil And Gas Plant
Fabrication Industry
Nuclear Power Plant
Water Pipeline Industry

Power Plants

Fertilizers

Petroleum Industry

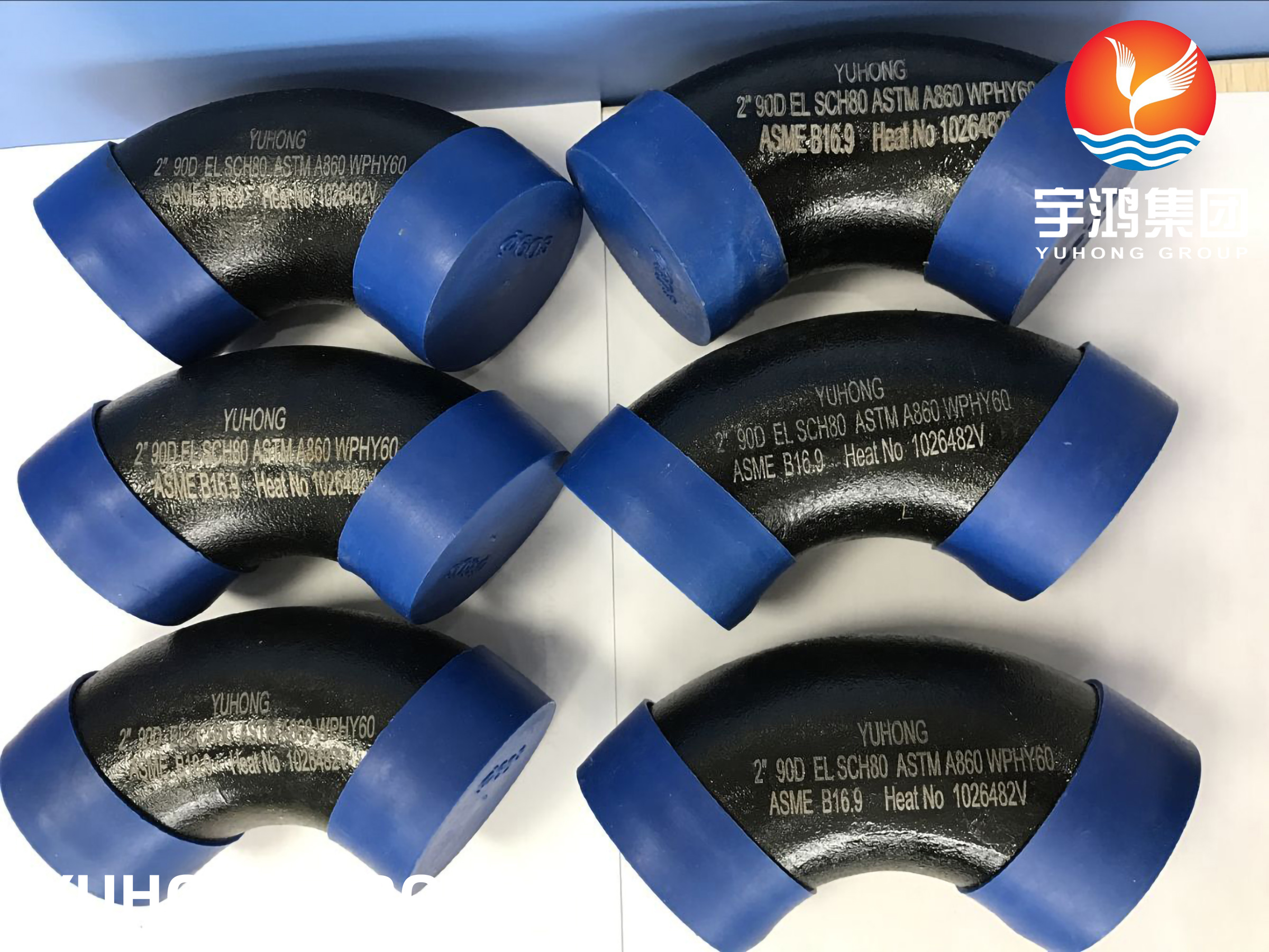

ASTM A860 WPHY60 Buttweld Black Carbon Steel Fittings, Elbows, Equal Tees B16.9
