| Copper Nickel 90/10 fittings specifications |
| Raw Material: Copper Nickel CuNi 90/10, Copper Nickel CuNi10Fe1,6Mn |
| Good Dimensions, Surfaces, Tolerance |
| Main Standard: DIN, EEMUA, ASME, JIS |
| BV Approved ASTM B366 Cupro Nickel 90/10 Fittings Manufacturer |
| MTC EN10204 3.1 issued |
| Copper Nickel WERKSTOFF NR. 2.0872 Butt Welding Fittings Standard: DIN 86090 |
| Marine Fittings | BUTTWELD – CLASS 200 |
| IAW NAVSEA DWG 810-1385880 |
| CUNI 90/10 |
| Specifications | ASTM B122 / B466 ASME SB122, SB466 |
| Size | 1/2" to 24" NB to 24"NB in |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-119, NAVSEA 802-5959353 App.B, BS4504 , BS4504, BS1560, BS10 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Similar Piping Fittings | CuNi 90/10 Compression Fittings |
| CuNi 90/10 Belled End Fittings |
| Cupro Nickel 90/10 Forged Fittings |
| Copper Nickel 90/10 Forging |
| Copper Nickel 90/10 Press Fittings |
| Copper Nickel 90/10 Elbow |
| Type | Seamless / Welded / Fabricated |
| Specialized in manufacturing | Cupro Nickel 90/10 Butt Welding Fittings |
| Cu-Ni 90/10 Outlets |
| Weld base ground for full penetration weld per MIL-STD-22D (P68 joint) |
| MSS SP-97. |
| Pilot and Non-Pilot Bosses |
| NAVSEA 810-1385912 |
| 45° Lateral Outlet |
| Elbow Outlet |
| Sanitary Hose Barb Outlets |
| 90/10 Cu-Ni Stub Ends & Bosses |
| Straight Thermowell Tees |
| Copper Nickel 90/10 Bellmouth Fittings |

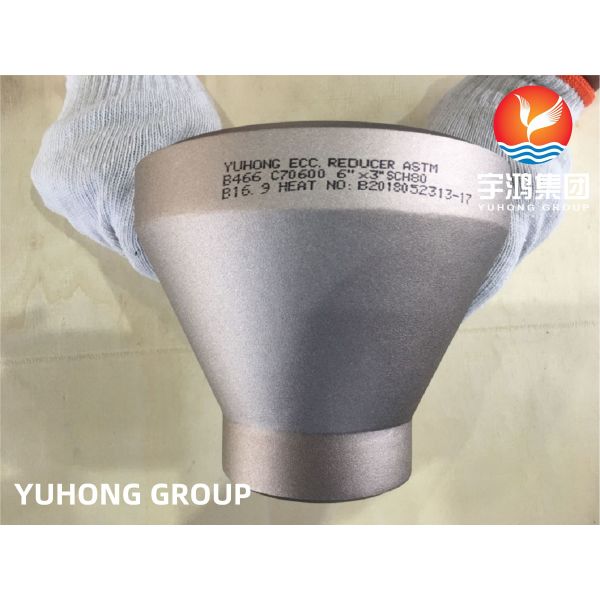

| Concentric Street Reducers |
| 90/10 Cu-Ni Collar |
| Long Turn Tees, Single /Double Sweep -NAVSEA 810-1385880, Revision D |
