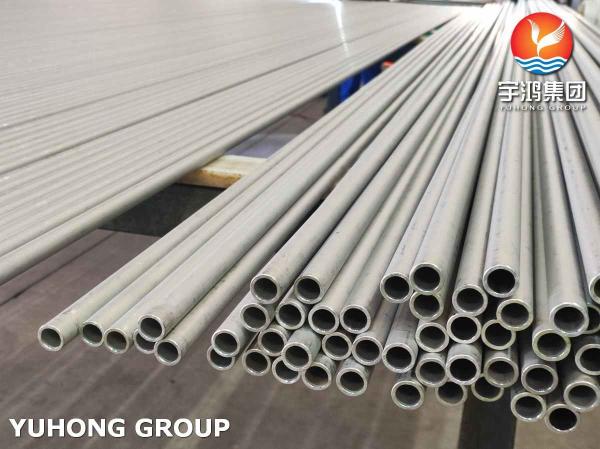

Stainless Steel Heat Exchanger Tube ASME SA213 TP316L 100% ET And HT Petrochemical Application

Brand Name : YUHONG

Model Number : ASTM A213, ASME SA213, GOST 9941, JIS G3459, EN 10216-5 , DIN 17458

Certification : ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Place of Origin : China,Korea

MOQ : 1PC

Price : 1--10000 USD

Payment Terms : L/C, T/T

Supply Ability : 10000 tons/month

Delivery Time : 5---75 days

Packaging Details : Bundle + Cap , Ply wooden case

Material Grade : TP316, TP316L, TP316H, TP316Ti, TP316LN, TP316LMO, 1.4401, 1.4404

Standard : ASTM A213, ASME SA213, GOST 9941, JIS G3459, EN 10216-5 , DIN 17458

Heat Exchanger Tube OD : 15.88mm, 19.05mm, 20.0mm , 25mm, 25.4mm, 31.75mm, 38.1mm

Heat Exchanger wall thickness : 0.89mm, 0.95mm, 1.0mm, 1.24mm, 1.27mm, 1.5mm, 1.65mm, 1.83mm, 2.0mm, 2.11mm, 2.413mm, 2.5mm, 2.54mm, 2.77mm , 3.05mm, 3.4mm

Length : Max.: 34m/pc

NDT : ET, UT, HT, PT, PMI

Type of tube : Straight , U bend , Coil

Contact Now

Stainless Steel Heat Exchanger Tube , ASME SA213 TP316L , 100% ET and HT, Petrochemical Application

ASME SA-213 / SA-213M: Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes.

Yuhong Group ASME SA213 TP316L Stainless Steel Heat Exchanger Tube datasheet :

Out Side Diameter: 31.75mm , 38.1mm , 44.45mm , 50.8mm , 57.15mm , 63.5mm, 76.2mm, .... 165.2mm ;
Wall thickness: 2mm to 20mm
Length: Max.: 34m/pc

All tubes of ASME SA213 match Grain Size <7. (ASTM E112 );

All tubes with 100% Eddy Current Test (ASTM E426);

All tubes with 100% Hydrostatic Test ( ASTM A1016 - 7Mpa/5s );

Tests of TP316L,TP316H Stainless Steel Heat Exchanger Tube
1.Chemical Analysis
2.Mechanical Properties
2.1Tensile Requirement
2.2Hardness Requirement
2.3Flattening Test
2.4Flaring Test
3.Hydrostatic Test or Nondestructive Electric Test

Chemical Composition of ASME SA213 TP316L , TP316H :

Grade
 C Mn Si P S Cr Mo Ni Niobium Other
TP316L min. - 2.0 1.0 0.045 0.03 16 2~3 10 / /
max 0.035 18 14 /
TP316H min. 0.04 2.0 1.0 0.045 0.03 16 2~3 10
/		 /
max 0.1 18 14 /

Mechanical Properties of ASME SA213 TP316L, TP316H:

Grade
 Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HRB) max Brinell (HBW) max
TP316L 485 175 35 90 192
TP316H 515 205 35 90 192
TP316H also has a requirement for a grain size of ASTM No 7 or coarser.

ASME SA213 TP316L Stainless Steel Heat Exchanger Tube application:

  • 1. Food preparation equipment;
  • 2. Laboratory benches & equipment;
  • 3. Coastal architectural panelling, railings & trim;
  • 4. Power Plant Boiler;
  • 5. Chemical containers, including for transport；
  • 6. Heat Exchanger；
  • 7. Oil and Gas；
  • 8. Petrochemical；
  • 9. Super Heater parts；
    10. Furnace.
