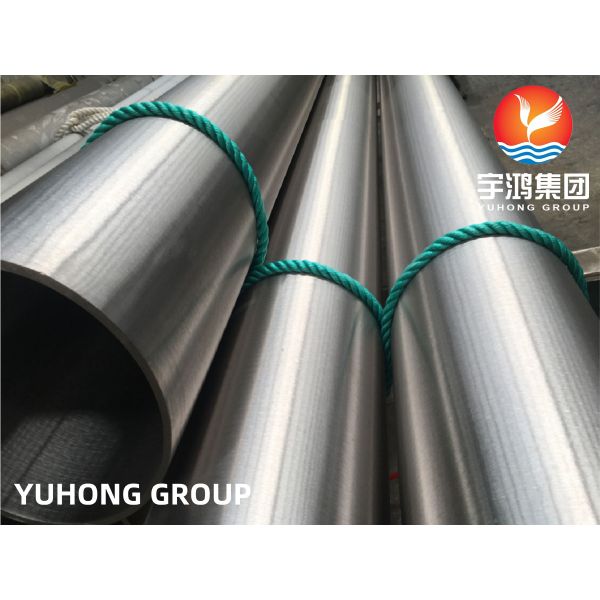

ASTM B165 Monel 400 Seamless Pipe Nickel Alloy Pipe Corrosion Resistant High Temperature Strength for Marine Engineering

Brand Name : YUHONG

Model Number : ASTM B165 N04400

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CHINA

MOQ : 100 KGS

Price : NEGOTIABLE

Payment Terms : T/T,L/C

Supply Ability : 1500 Tons Per Month

Delivery Time : 20-80 days

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Thickness : 0.4-30mm, 1.0mm, 0.6mm-2500mm, 1mm-60mm, 0.6-25 mm

Contact Now

ASTM B165 Monel400 N04400 Seamless Pipe Nickel Alloy Steel Pipe
Monel 400 is a solid solution alloy consisting of nickel and copper. While the nickel content is about 67%, the copper content in the Monel 400 pipe chemistry is about 23%. Typical of most nickel-containing alloys, this grade tends to have high strength even at high temperatures. Although Monel 400 seamless tubing is not recommended for use in temperatures above 1000°F.
The melting point of this Monel alloy is between 2370°F - 2460°F. The high melting point indicates better dimensional stability of ASTM B165 Alloy 400 seamless pipe, especially since high temperatures often cause changes in the flow of metal molecules, which alter their physical appearance. The marine engineering industry prefers ASTM B725 UNS N04400 welded pipe for a variety of operational purposes because of its higher copper content. Copper is known for its rich properties as an alloying agent in components such as Monel 400 rectangular tubes, including resistance to seawater or saline solutions.
Another feature that makes 400 Monel alloy square tube attractive in the marine industry is the alloy's low corrosion rate in fast-flowing brackish water. These properties, combined with the excellent resistance to stress corrosion cracking found in many freshwater sources, make this alloy indispensable.
Material Specifications
Material: UNS N04400
ASTM B165 UNS N04400 Chemical Composition
Monel400 Ni C Mo Mn Si Fe P S Co Cr
63.0 0.3 / 2.00 0.5 2.5 / 0.024 / / /
ASTM B167 UNS N06601 Mechanical Properties
Density Melting Point Yield Strength (0.2% Offset) Tensile Strength Elongation
8.8 g/cm³ 1350 °C (2460 °F) Psi - 35,000, MPa - 240 Psi - 80,000, MPa - 550 40 %
Equivalent Material Grades
STANDARD UNS WERKSTOFF NR. AFNOR EN JIS BS GOST
Monel400 N04400 2.4360 NU-30M NiCu30Fe NW 4400 NA 13 МНЖМц 28-2,5-1,5
Product Specifications
  • Size: ½" to 6" NB Sch 10s, 40s, & 80s, 160s
  • Wall Thickness: 0.1 - 60 mm
  • Monel Alloy 400 Pipes Length:
    • Single Random Length: 5 to 7 meters
    • Double Random Length: 10 to 12 meters
  • Surface Finish: Cold Finish, Bright, Polished, Annealing, Pickling, or as per client requirements
  • Standard: JIS, AISI, ASME, ASTM, AMS, GB, DIN, EN, GOST
  • Manufacturing Types: Seamless, Welded, ERW, EFW
  • Manufacturing Shapes: Round, Square, Rectangle, Box Section
  • Manufacturing Technology: Hot / Cold Formed
  • Inspection & Test Reports: EN 10204 3.1, Mill Test Certificates, PMI Test Reports, Chemical Reports, Mechanical Reports, NABL Approved Lab Reports, Visual Inspection Reports, Destructive and Non Destructive Test Reports, Third Party Inspection
  • Technique: Cold Rolled, Hot Rolled
ASTM B165 Monel 400 Seamless Pipe Nickel Alloy Pipe Corrosion Resistant High Temperature Strength for Marine Engineering
