ASTM A213 Grade T5 Alloy Steel Seamless Tube Heat Exchanger Tube

Brand Name : YUHONG

Model Number : ASTM A213 T5 Alloy Steel Seamless Tube

Certification : ISO9001-2008, API 5L, API 5CT, PED, AD-2000, EN10204-3.1B

Place of Origin : CHINA

MOQ : 5TONS

Payment Terms : L/C, T/T

Delivery Time : 7days

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Product Name : Heat Exchanger Tube

Standard : ASTM A213, ASME SA213

Material Grade : T5, T9, T11, T12, T23, T22, T91, T92

Size : ID: 12.7mm To 168.3mm , WT: 1mm To : 40mm , Length Max.:32m/pc

Length : Single Random, Double Random & Cut Length

End : Plain End, Beveled End

Type : Seamless

NDT : ET, UT, HT, MT

Application : Boiler, Heat Exchanger, etc.

High Light : ASTM A213 T5 Alloy Steel Seamless Tube, T5 Alloy Steel Boiler Tube

Contact Now

ASTM A213 Alloy T5 Seamless Tube for Boiler and Heat Exchanger Application

ASTM A213 alloy T5 has several elements such as silicon, molybdenum, nickel, chromium, manganese, vanadium. This alloying element helps to increase wear resistance, toughness and strength. A213 T5 tubing serves industries such as petrochemical, power generation, sugar mills, pulp & paper, heat recovery steam generation, etc. sa213 T5 material properties of hot strength make it suitable for use in pressure bearing plants having operating temperature of up to 1000°C.

Tube Sizes for Heat Exchangers & Condensers & Boiler
Outside Diameter 　 BWG
25 22 20 18 16 14 12 10
　 Wall Thickness mm
0.508 0.71 0.89 1.24 1.65 2.11 2.77 3.40
mm inch 　 Weight kg/m
6.35 1/4 0.081 0.109 0.133 0.174 0.212 　 　 　
9.53 3/8 0.126 0.157 0.193 0.257 0.356 0.429 　 　
12.7 1/2 　 0.214 0.263 0.356 0.457 0.612 0.754 　
15.88 5/8 　 0.271 0.334 0.455 0.588 0.796 0.995 　
19.05 3/4 　 0.327 0.405 0.553 0.729 0.895 1.236 　
25.4 1 　 0.44 0.546 0.75 0.981 1.234 1.574 2.05
31.75 1 1/4 　 0.554 0.688 0.947 1.244 1.574 2.014 2.641
38.1 1 1/2 　 0.667 0.832 1.144 1.514 1.904 2.454 3.233
44.5 1 3/4 　 　 　 1.342 1.774 2.244 2.894 3.5
50.8 2 　 　 　 1.549 2.034 2.574 3.334 4.03
63.5 2 1/2 　 　 　 1.949 2.554 3.244 4.214 5.13
76.2 3 　 　 　 2.345 3.084 3.914 5.094 6.19
88.9 3 1/2 　 　 　 2.729 3.609 4.584 5.974 7.27
101.6 4 　 　 　 　 4.134 5.254 6.854 8.35
114.3 4 1/2 　 　 　 　 4.654 5.924 7.734 9.43

ASTM A213 T5 Seamless Alloy-Steel Tubes Chemical Composition(%)

Grade Chemical Composition(%)
C Mn P S Si Cr Mo
A213 T5 ≤0.15 0.30-0.60 ≤0.025 ≤0.025 ≤0.50 4.00-6.00 0.45-0.65

ASTM A213 T5 Seamless Alloy-Steel Tubes Mechanical & Physical Properties
Grade Mechanical property
Tensile Strength(MPa) Yield Strength(MPa) Elongation(%) Hardness(HB)
A213 T5 ≥415 ≥205 30 ≤163

Note: Mechanical property requirements do not apply to tubing smaller than 1⁄8 in. [3.2 mm] in inside diameter or thinner than 0.015 in. [0.4 mm] in thickness.

ASTM A213/ASME SA213 Size Tolerance

Outside Diameter OD Tolerance WT Tolerance Ovality Tolerance Cut Length Tolerance
OD≤ 12, 7 mm ± 0, 13 mm ± 15 % – + 3, 18 mm, – 0 mm
12, 7 mm < OD ≤ 38, 1 mm ± 0, 13 mm ± 10 % max, 1, 65 mm + 3, 18 mm, – 0 mm
38, 1 mm < OD ≤ 88, 9 mm ± 0, 25 mm ± 10 % max, 2, 41 mm + 4, 76 mm, – 0 mm

Trade Name

Grade

UNS #

Heater Tubes

1 1/4 Chrome

T11

K11597

A213 / SA213

2 1/4 Chrome

T22

K21590

A213 / SA213

5 Chrome

T5

K41545

A213 / SA213

9 Chrome

T9

K90941

A213 / SA213

T91

T91

K90901

A213 / SA213

T92

T92

K92460

A213 / SA213

Applications

  1. Power Generation

  2. Petrochemical Industry

  3. Oil and Gas

  4. Automotive

  5. Aerospace

  6. Heat Exchangers

  7. Boilers

ASTM A213 Grade T5 Alloy Steel Seamless Tube Heat Exchanger Tube


Wholesale ASTM A213 Grade T5 Alloy Steel Seamless Tube Heat Exchanger Tube from china suppliers

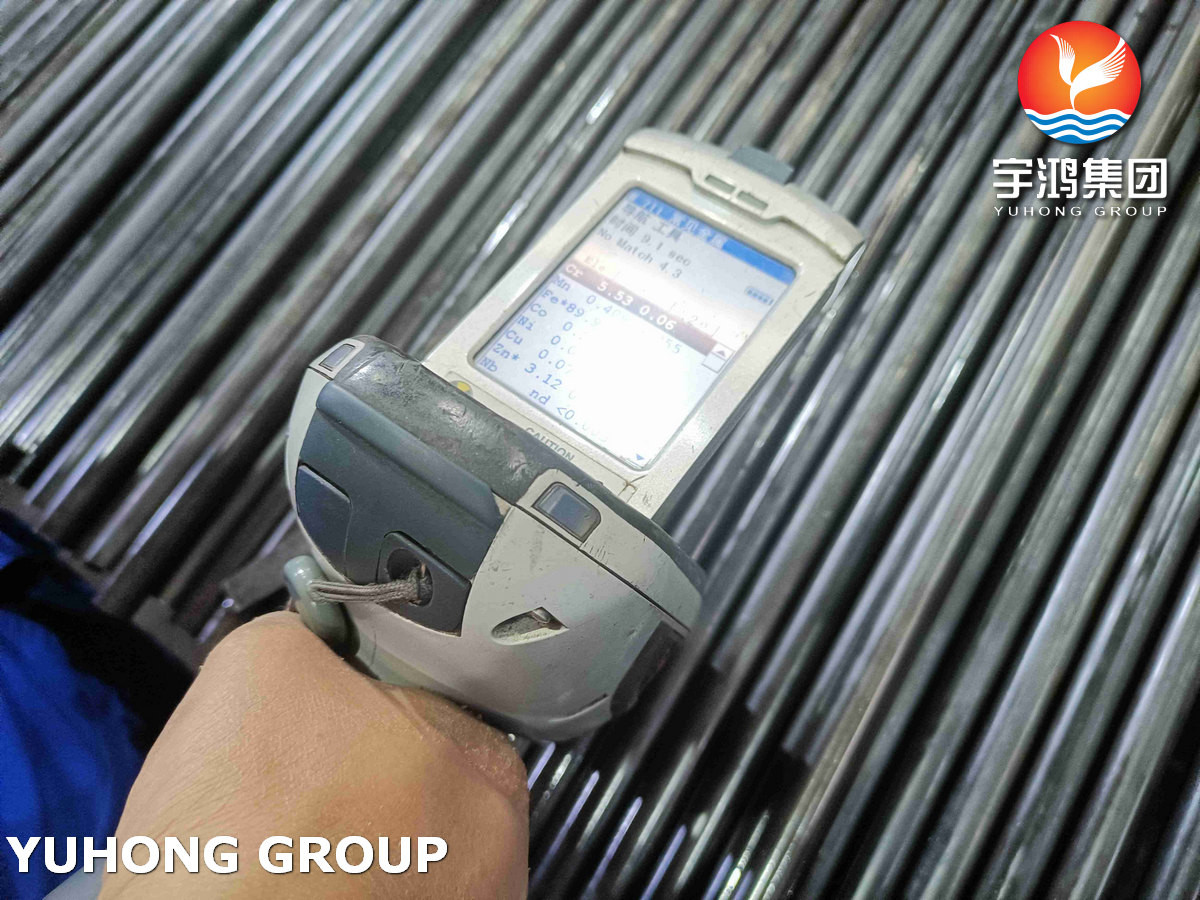

ASTM A213 Grade T5 Alloy Steel Seamless Tube Heat Exchanger Tube Images
